Etching Press – Model EP4021

Traditional Style Etching Press

• Specially designed for ease of operation, production of perfect etchings, and at a size and price to suit all artists. Extremely robust, solid construction.

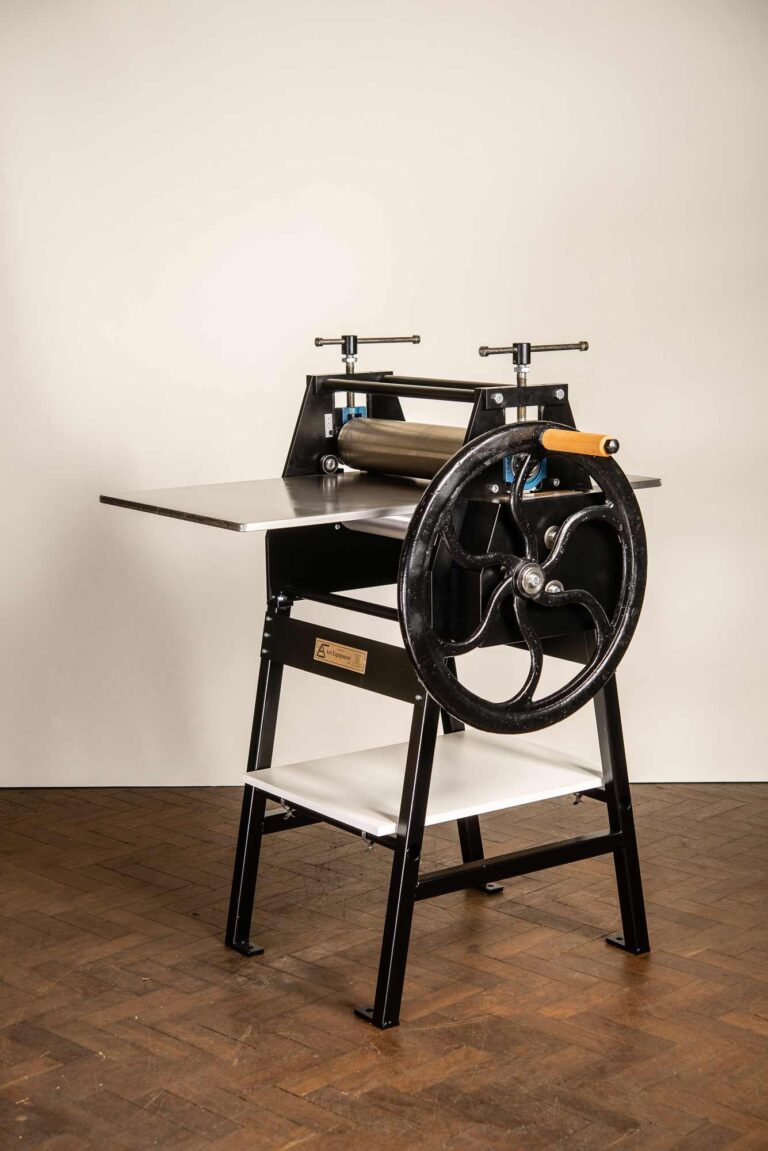

• Bench mounted or can be supplied with a purpose-built stand (as shown).
• Plank size 40″ x 21″ (1015 x 535mm).
• Ground and plated solid steel top roller 4½″ (115mm).
• Solid steel bottom roller in 4½″ (115mm).
• 12.5 mm thick steel side frames.
• Both rollers ball race mounted.
• Double reduction gearing.
• Traditional style heavy cast iron spoked hand wheel.
• Double width wooden handle.
• No assistance to plank is necessary.
• Useful shelf underneath.
• Uninterrupted access to plank.
• No trap points for fingers or blankets.
• Plastic faced plank available if required for easy cleaning and for registration marking.

Recommended Blankets:
1 Best quality Fronting Felt size 40″ x 20″
(1015 x 505mm)

1 Best quality Compressed Wool Backing size 40″ x 20″
(1015 x 505mm)

For LITHOGRAPHS 1 – Lithograph grey blanket

Shipping Specifications:
Case Size:
Nett Weight: 440lbs. (200Kg)

Price shown includes stand, but not blankets. Press can be supplied without stand if required.
